The situation: every part queued for the CMM
This manufacturer makes vacuum chambers for semiconductor fabs, where a tiny deviation can ruin a costly production run. Every port, flange angle and internal structure has to be right.
That made incoming quality control demanding. Complex, custom-machined parts from suppliers each had to be checked against very tight specifications on a Coordinate Measuring Machine (CMM). The CMM is extremely accurate, but setting up a complex chamber took hours, needed specialist technicians and tied up an expensive machine.
A new generation of chambers, with more complex geometry and tighter tolerances, turned this into a crisis. Expensive parts queued in receiving, verified parts could not reach assembly, and production started late. The machine meant to protect quality had become the main obstacle to output.

What they did: AR triage before the CMM
Instead of buying another CMM or hiring more inspectors, the company added a tablet-based AR check in the receiving area. It does not replace the CMM. It decides which parts need it.
Parts with obvious errors are rejected straight away and never use CMM time. Only parts that pass the visual check, or give unclear results, go on for full CMM measurement. A training programme made sure every inspector was comfortable with the new tool, and they adopted it quickly.
How it works
- The inspector places the chamber on a standard workbench in receiving.
- Scanning the part's barcode on a ruggedised tablet loads the latest CAD model.

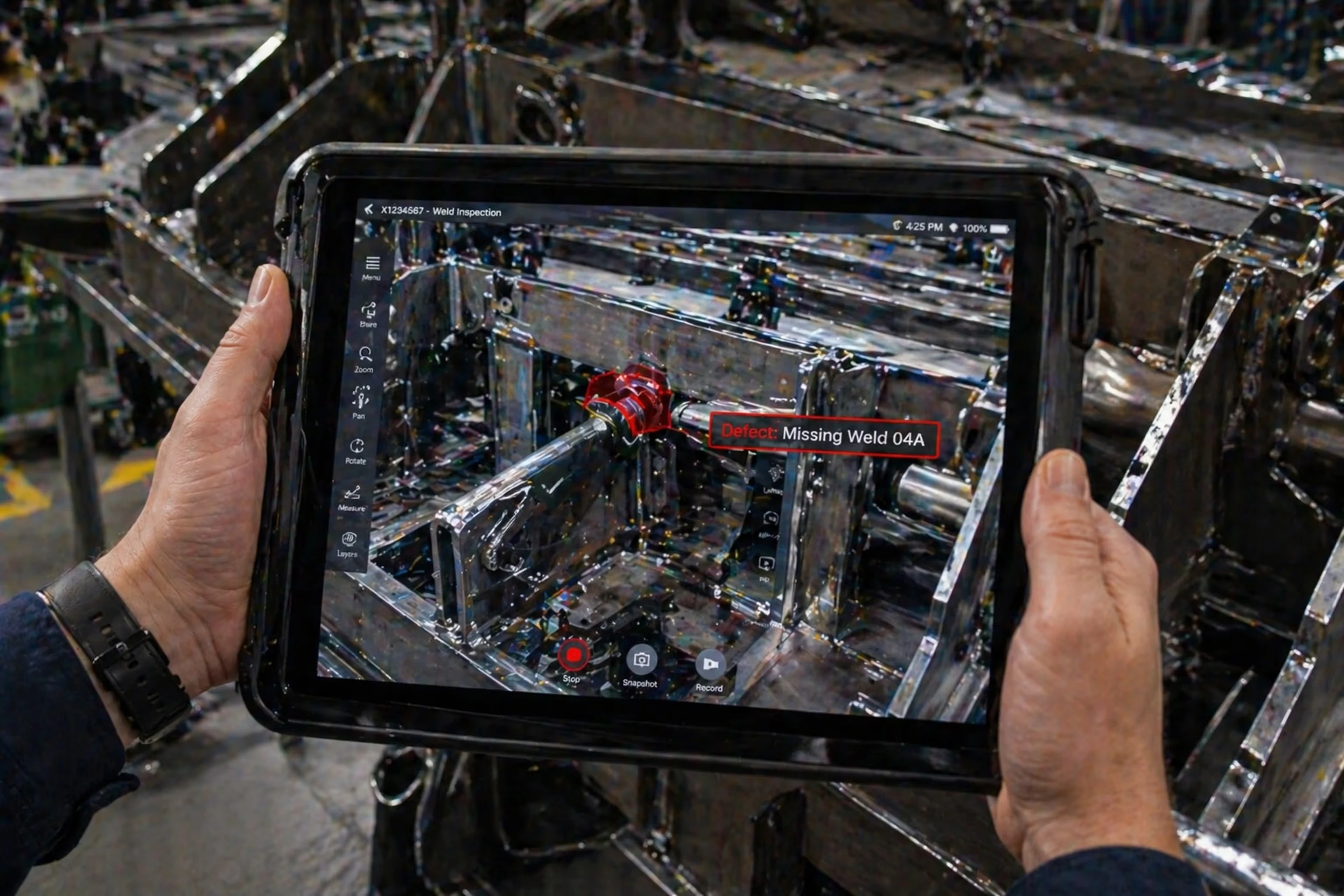

- Pointing the camera at the part, the app recognises it and snaps a translucent, colour-coded wireframe of the CAD model onto it.
- The inspector walks around the part and checks for clear deviations: missing or misplaced ports, flanges welded at the wrong angle, and incorrectly positioned internal baffles.
- Green shows a match; red or yellow flags a possible deviation. Tapping a feature shows its tolerance from the CAD data.
- A screenshot of the overlay clashing with the part serves as evidence for the supplier.
Engineers also use the same tool to overlay new designs on physical prototypes, spotting design or manufacturing issues before full production.

Results
The company has not published figures that we can cite, so this section describes the changes without numbers.
- A much faster first check: a part that once waited hours for CMM set-up can be triaged at a workbench in receiving.
- Better use of CMMs: the machines now focus on final verification of critical dimensions and first-article inspections, adding capacity without new investment.
- Faster supplier dispute resolution: a visual screenshot is clearer than a complex CMM report, so disputes close faster.
- Fewer production delays: verified parts flow to assembly predictably, so production starts sooner.
- A full digital audit trail for every inspection, which helps with compliance and reduces paper.

What it means for manufacturers
Many plants have an expensive, accurate measuring machine that has become a queue. This example shows a simple fix: put a fast visual check in front of it, so the machine only measures parts that are worth measuring.
It also shows that tablet AR is suited to precision work. Using devices people already know avoids the comfort, safety and adoption issues that can slow down headset projects. The approach applies in aerospace, defence, medical devices, automotive and heavy machinery.
To see where AR could help in your own plant, read our page on augmented reality or talk to our team.
